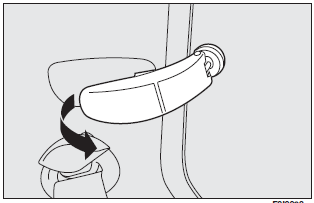

The windows open outwards:
❒ move the lever as shown in the figure;
❒ push the lever outwards to open the window completely;
❒ push the lever back until it clicks.
To close the windows, pull the lever to the opposite direction until it clicks.
